DDaCA R-VEd Page28 - Phase1 0028/2316

Generally, when one talks about architecture one speaks about a computer from the the perspective of a programmer. The Intel x86 architecture, according to which most microprocessors in modern PC's are built, is defined by a set of instructions and registers that programmers are allowed to use.

Computer engineers and scientists have learned a systematic approach to managing complexity. The idea is to understand how these things work in a broad sense, without getting bogged down in endless detail.

1.2.1 Abstraction

The essential method to keep complexity at bay is abstraction. This method hides what is not important The mind does this all the time. Since being aware of everything that exists all the time would drive us mad. We simplify things by using simplistic concepts to classify everything that arises within our awareness.

Overview of possible layers of abstraction of a computer system
from 'Application Software' = high-level to 'Physics' = low-level

All the way down the ladder of abstractions exists the motion of electrons. Their behavior is described by quantum mechanics and Maxwell's equations. Computer systems are constructed with electronic components such as transistors, in the case of modern pc's, or were, for example, built with vacuum tubes, decennia ago. Both these components have connection points called terminals. These points can be modeled by the measured relationship between voltage and current.

At this level of abstraction we can ignore the individual electrons. The next level upwards, we perceive the analog circuits. These are used to develop components like for example amplifiers. Analog circuits input and output a continuous range of voltages. Digital circuits, such as logic gates, on the contrary, restrict voltages to discrete ranges, which we label 0 and 1. Within Logic Design we build complex structures with digital circuits such as adders or memories.

Micro architecture links the logic and architecture levels of abstraction. When we talk about the architecture level of abstraction we describe a computer from the programmer's perspective.

P.S. I synthesize and re-write in my own words what books teach, write any example programs they contain, solve all exercises they offer, and add own comments cursively in blue. I list pages done vs total pages, including any roman and appendix numbered pages.

DDaCA R-VEd - Phase1 0026/2316

1 From Zero to One

1.1 THE GAME PLAN

The continuous innovation in the field of CPU's, during the past 30 years, has advanced our way of life tremendously. This book teaches the reader how to design their own microprocessor. Along the way readers obtain skills that prepare them to design many other digital systems as well.

It is expected from students who want to study this book that they have

basic familiarity with electricity
some programming experience
genuine interest in what goes on under the hood of a computer

This book focuses on the design of digital systems, which operate on 1's and 0's.
we:

explore digital logical gates that can receive 1 or 0 as input and produce 1 or 0 as output
show how logic gates are put together in complicated combinations (modules)
teach programming in assembly language
build a microprocessor

The building blocks to build a microprocessor are simple, but the end product is very complex. One of the themes of this book is how to manage complexity.

My current curriculum (2316+3385=5701 pages)

I revised my curriculum after I realized that both hardware books, one in each of the 2 phases, neglected the circuit level of computer hardware.

The 3 Books I target now, in my PRE-Earn Phase (733+879+704=2316 pages)

1. Digital Design and Computer Architecture RISC-V Ed. - S.L Harris & D.M Harris, 2021. (733 pages)
This book covers the fundamentals of computer architecture.

2. x64 Assembly Language Step-By-Step Programming 4Ed. - J. Duntemann, 2023. (879 pages)
This book covers the fundamentals of ASM programming.

3. Sams Teach Yourself C Programming, 7Ed. - B.L. Jones, P.G. Aitken, D. Miller, 2013. (704 pages)
Decent, praised book on the basics of C programming.

3 Books I want to target in my POST-Earn Phase (864+1999+522=3385 pages)

1. Fundamentals of Digital Logic with Verilog Design 3Ed. (864 pages)
It covers details of computer hardware in relation to logic gates.

2. Assembly Programming for x86 Processors 8th Ed. - K. Irvine, 2019. (1999 pages)
This book covers assembly programming, the low-level programming language that sits between hardware and high-level programming.

3. Modern C 3th Ed. - J. Gustedt, 2025. (522 pages)
This book covers intermediate level C programming, according to the C23 standard.

SCO Ed6 Page9 - Phase1 0009/2384

The invention of Microprogramming

In the 1940's, computers had only two levels:

the digital logic level (Level 0)

here programs were executed

the ISA level (Level 1)

here the programming was done

Hardware then was complicated, difficult to understand and built, and unreliable.

data types
operations
features

of each level is called the architecture of that level. Architecture of a level refers to the visible aspects of the level as they present themselves to the user of that level.

Implementation aspects are not part of the architecture. The study of the design of those parts of a computer system that are visible to programmers is called computer architecture.

But, essentially, computer architecture and computer organization are the same thing.

1.1.3 Evolution of Multilevel Machines

Programs written in machine language (level 1) can be directly executed by the electronic circuits (level 0),
without the need for interpretation or translation.

Hardware
Level 0
Tangible objects:integrated circuits, printed circuit boards,
cables, power supplies, memories, printers ...

Software
Level 1 - ...
Abstract ideas, algorithms, instructions, computer graphical or additive representations (applications)

History
With the first computers the separation between hardware and software was clear. It got gradually more blurred due to the addition, merging and removal of layers of abstraction, as the machines developed and computing became ever more complex.

But, in the end, hard- and software are logically equivalent, since one can be resembled the other, and, at least theoretically, even be replaced by the other.

The choice between hardware vs software solutions is one of cost, speed, reliability and the expected frequency of changes/additions.

Levels 0 to 3

Are not normally accessed by the average programmer, rather programs like interpreters and translators are running on those levels, to support applications of the higher levels. Such level 3 programs are written by system programmers. These people specialize in designing and implementing virtual machines.
Level 2 and 3 are always interpreted. Levels 1. 2 and 3 code is always numeric. Easy to read for machines but hard to read for humans.

Level 4 and up

Are used by application programmers. These levels are usually translated but sometimes also interpreted. These programs are human readable to different degrees.
Level 4: assembly language (ASM), is a symbolic form of the levels below and is particularly well suited to write programs that levels 1-3 can understand, while still being reasonably readable to humans. Assembly is first translated to the destined level by the assembler program and then there interpreted by the respective virtual machine or directly by the hardware.
Level 5 consists of the high level languages, used for applications with specific functionality. Many exist: C, C++, Java, Perl, Python, PHP, etc., etc. These are most often translated to level 4 or 3 by translaters called compilers, but sometimes also interpreted: Java, for example is first translated to Java byte code, an ISA-like language, which is then interpreted. On level 5 here are also specialized interpreters for specific application domains, like for example symbolic mathematics.

The main point to understand about computer organization is that computing consists of layers of abstraction and interpretation/translation, which are brought forth by different kinds of software programs and hardware operations.

(but in essence, there is only hardware, and all the abstraction happens within the human mind)

P.S. I synthesize and re-write in my own words what books teach, write any example programs they contain, solve all exercises they offer, and comment cursively. I list pages done vs total pages, including any roman and appendix numbering.

SCO Ed6 Page6 - Phase1 0006/2384

Each register can hold starting from minimum 1 binary up to a certain maximum of binaries, defined by the specific hardware architecture. Gates also form the main computing engine itself.

The proceeding level, level 1, is the micro-architecture level. Here we see a collection of typically 8 to 32 registers that form a local memory and a circuit called Arithmetic Logic Unit (ALU). The ALU does simple arithmetic operations. Certain registers are connected to the ALU and together form a data path over which data flows. The data path selects registers and has the ALU operate on them, for example, adding them together, and then storing the result in another register.

On some machines, especially older machines, these operations are controlled by a program called microprogram. But on other machines, especially newer machines, the data path is directly controlled by the hardware. In older editions of the book level 1 was called the micro programming level, since a interpreter software was involved. In newer editions the name of this level is renamed into micro architecture level.

Software control of the data path was instructed with a level 2 language program that then was interpreted by level 1 software. Such a program would fetch, examine, and execute instructions one by one, via the data path. On a modern machine with hard-wired control of the data path, similar steps take place but without an explicitly stored program directing these..

The book calls level 2 the Instruction Set Architecture level (ISA level). Computer manufacturers publish manuals for each computer they sell that describe the principles that apply to the ISA level of their product.

The level above the 2nd is usually a hybrid level. This 3th level carries some of the same instructions as level 2 + some additional instructions and a different memory organization, the ability to run two or more programs simultaneously and more. Level 3 designs can differ widely between computers on the contrary to level 1 and 2 designs which are more universal (on the same level). The new level 3 instructions are interpreted by a level 2 interpreter. This interpreter has historically been called an operating system. Those instructions on level 3 that are also used on level 2 are executed directly by the microprogram or the equivalent hardwired hardware control.

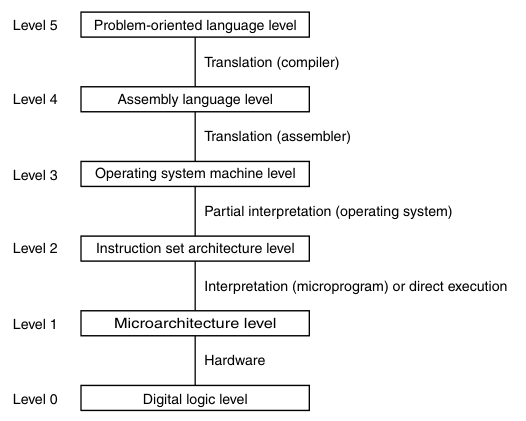

The 6 level computer. Below each level we list the support method of said level

The lowest level that we will study, level 0, is the digital logic level. It consists of the most essential elements of computing: gates. In the underlying level these digital devices are composed of analog components, such as transistors. A gate receives one or more digital signals, called input, which are represented in level 1 as 0 or 1, and they compute as output combinations such as AND or OR. Each gate is composed of at max a handful of transistors. A small number of such gates are combined to form a 1-bit memory, which can store a state of 0 or 1. These 1-bit memories can be combined in groups to form registers of, for example, 8, 16, 32 or 64-bit memory.

For translation or interpretation to be practical, the difference between L0 and L1 should not be too great. Because of this limitation, L1, while being more suitable for programming by humans than L0, will still not be very suitable, for most applications.

The answer to this, is the development of yet another, again more abstract, set of constructions that is yet more easy to be understood by humans. We will call this language L2. A virtual machine that uses L2 as it's own language, we will call M2. We will need software to translate L2 into L1, for running at a M1 machine/. And we can use L1 interpreters to interpret L2 interpreted languages.

This process of creating language upon language theoretically can go on indefinitely, until the theoretic perfect language is achieved. We could see these as layers of abstraction within the organization of computing.

Theoretically we can also perceive of a machine that functions on each of these layers, as if the language at the same level can be run natively on it. The writer things such machines are even possible as hardware, but that such machines are not cost effective since it is much easier to use software to achieve higher levels of abstraction upon low level hardware.
In this sense 1 computing machine can be seen as, in effect, consisting of several (virtual) computing machines of the respective degrees of abstraction.

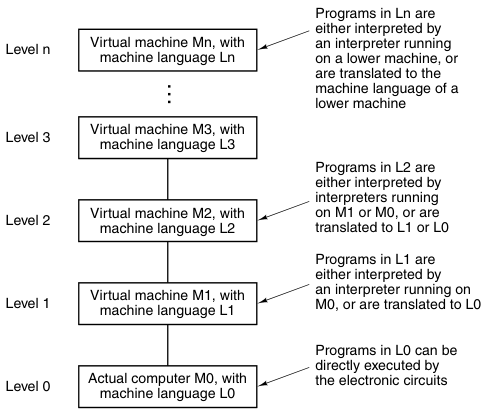

A multilevel machine

In this book the words 'level' and 'virtual machine' will be used interchangeably. Just keep in mind that computer terms can mean different things within different contexts and the term 'virtual machine' can mean several things.

Although only at level 0 instructions are put in effect, a programmer, writing at any of the different levels of abstraction need not know what his program is converted into before reaching the hardware, in order to write solid programs.

High-level programmers are generally not interested in what happens at the low-level. People designing new computers must understand at least the lower levels of computing. People who really want to understand how computing works must study all the levels.

The description of the computer as a series of levels of abstraction in relation to the effect the existence of such levels has on computing methods, is the central theme of this book.

I find myself challenged by friction between wanting to gain specific knowledge and the urgency of landing jobs to make money.

This morning I have been contemplating deeply on the pressure to get ready to earn money and the depth of knowledge I want to obtain. And consequently I have been juggling with books that I want to study in terms of page count and contents, to create a suitable curriculum.

I concluded that I want to aim for income asap but without compromising on the knowledge I eventually want to obtain.

To achieve this balance I defined 2 phases: a Pre-Earn Phase and a Post-Earn Phase (2384+5135=7519 pages)

The 3 Books I target now, in my PRE-Earn Phase (801+879+704=2384 pages)

1. Structured Computer Organization 6th Ed. - A.S. Tanenbaum & T. Austin, 2013. (801 pages)
This book covers the fundamentals of computer hardware in relation to programming as well as an introduction to ASM programming.

2. x64 Assembly Language Step-By-Step Programming 4Ed. - J. Duntemann, 2023. (879 pages)
This book covers the fundamentals of ASM programming.

3. Sams Teach Yourself C Programming, 7Ed. - B.L. Jones, P.G. Aitken, D. Miller, 2013. (704 pages)

3 Books I want to target in my POST-Earn Phase (2614+1999+522=5135 pages)

1. Computer Systems: A Programmer's Perspective, 3Ed. - R.E. Bryant & D.R. O'Hallaron, 2016. (2614 pages)
This book was already on my list since I started me study, but back then I decided not to use it because I assumed using Linux OS was a per-requisite and I was using Windows XP. Now I am using Windows 10, which offers the Windows Subsystem for Linux, so the barrier to use it is now out of the way. It covers detailof computer hardware in relation to programming.

3. Modern C 3th Ed. - J. Gustedt, 2025. (522 pages)
This book covers intermediate level C programming, according to the C23 standard.

check the state of what is already set
add 2 digits
check whether a digit stored is zero
copy a state of one memory location to another memory location
...

A collection of possible instructions forms a language that users use to communicate with the computer. This language, to which the computer can respond, we call machine language.

People who design a new computer also record the body of instructions with which to operate it. Because the machine can only understand very simplistic instructions, this language is tedious to handle by humans, especially once instruction sets become elaborate.

For this reason people created a language that consist of prepared instruction sets that are triggered by human-understandable commands. These commands are easier to understand, oversee and organize by humans. This language formed a first layer on top of the machine language. Later more layers were built, each on top of the former, in the same way. These languages became ever more clear and intuitive to use by humans.

The way that computer instructions are thus organized, is called structured computer organization. This is also the name of this book, and in the next section we will explain what this term exactly means. After this explanation we will look into historical developments, and the current state of the art of programming computers.

1.1 STRUCTURED COMPUTER ORGANIZATION

Computers can not understand human language and humans can not easily understand computer language. This book explains how this gap can be bridged.

1.1.1 Languages, Levels, and Virtual Machines
There are 2 main methods in vogue to solve the problem. Both ways involved designing a new,set of instructions that is more convenient for humans to use. These sets form each a new language which we will, for the sake of example, call Level 1 languages. The collection of machine instructions we already had, we will call the Level 0 language. Our 2 L1 languages differ from one another in their approach and we will call them A and B.

In the case of the L1 A language, a compiler replaces all instructions in a program with the equivalent sequence of instructions in L0 machine language before executing the newly begotten program in its entirety. This method is called translation, and the program that replaces the original text a compiler.

In the case of the L1 B language, a runtime environment replaces and immediately runs the program's instructions, one after the next. This method is called interpretation and the program that interprets the interpreted instructions the interpreter.

In both cases the program is created in L1 language and then converted and ran as L0 instructions. But in the first case the program is first converted entirely and only then ran, while in the second case the program is converted and ran instruction per instruction. Both types of languages are commonly used today and even mixed with one another.

My curriculum = 3661 pages

Based on my various learning experiences of the past months I evolved to the following study situation, which should get me to a level of comprehensive understanding of modern computer programming.

Basically I build my knowledge from the bottom up:

1. Structured Computer Organization 6th Ed. - A.S. Tanenbaum & Tod Austin, 2013. 801 pages.
This book covers the fundamentals of computer hardware in relation to programming..

2. Assembly Programming for x86 Processors 8th Ed. - Kip Irvine, 2019. 1999 pages
This book covers assembly programming, the medium between hardware and software.

3. C Programming: A Modern Approach 2nd Ed. - K.N.K King, 2008. 861 pages
This book I already followed, but this is the more recent 2th Edition, which includes the C99 standard.
It covers the C programming language, which is the best language to connect low-level programming with high-level programming.

Understanding these 3 levels of programming will make me a solid programmer who can fill in various kinds of programming jobs.
